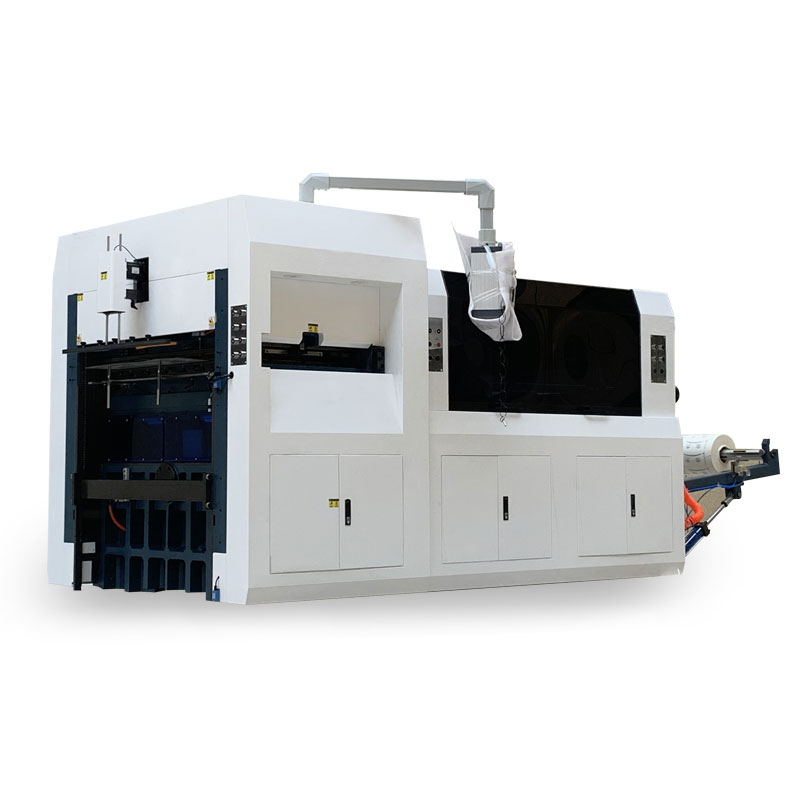

Rotary Die Cutting Mechanism: The heart of a roll die cut machine is its rotary die cutting mechanism. This mechanism consists of one or more cylindrical dies mounted on a rotating cylinder. As the material passes through the machine, the rotating dies cut or shape the material into the desired shapes or patterns.
Material Feeding System: Roll die cut machines are designed to process materials in roll form. They typically feature a material feeding system that allows large rolls of material, such as paper, film, adhesive tape, or labels, to be loaded onto the machine for processing.

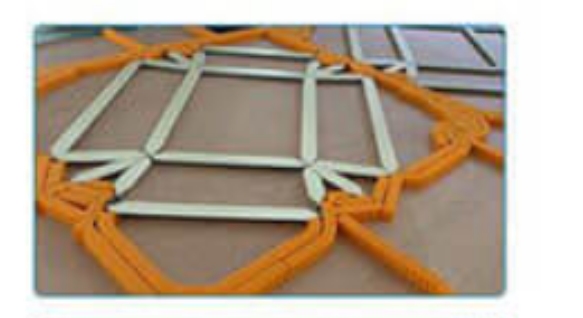

Adjustable Cutting Dies: The cutting dies used in roll die cut machines are highly customizable. They can be configured to cut various shapes, sizes, and patterns, depending on the specific requirements of the application. The cutting dies can be easily swapped out or adjusted to accommodate different jobs.
High-Speed Production: Roll die cut machines are capable of high-speed production, making them ideal for large-volume manufacturing operations. The rotary die cutting process allows for rapid and continuous cutting, increasing productivity and efficiency.
Precision and Accuracy: Roll die cut machines offer precise and accurate cutting results, ensuring consistency and quality in the finished products. The cutting depth, speed, and pressure can be finely controlled to meet specific requirements.
Versatility: Roll die cut machines are highly versatile and can be used to cut a wide range of materials, including paper, cardboard, plastic films, foils, rubber, textiles, and more. They are commonly used in industries such as packaging, labeling, automotive, electronics, and medical devices.
Automation and Integration: Many roll die cut machines feature automation capabilities, such as automatic feeding, cutting, and stacking systems. They can also be integrated into fully automated production lines for seamless operation and increased efficiency.
1.Main Technical Parameters
|
Cutting Precision |
±0.1mm(white paper) |
|
Rated Cutting Speed |
180times/min |
|
Max Cutting Pressure |
320T |
|
Max Cutting Paper Size(W×L) |
1150mm*610mm(W×L) |
|
Min Cutting Paper Size(W×L) |
400mm*350mm (W×L) |
|
Suitable Paper Weight |
70g-500g |
|
Total Rate Of Machine |
16Kw |
|
Overall Dimensions |
4.6m*2.8m*2.3m (L×W×H) |
|
Total Weight |
8.2T |
2. Structure Device List
|
No. |
COMMODIT |
DESCRIPTION |
|
1 |
Handpiece5 Components, Casting Parts
|
Crossbeam, Lifting Table, The movement Base, Left and Right Wallboard |
|
2 |
Inter-Machine Transmission Device |
Worm Gear, Worm |
|
3 |
Chopping Board |
NO.65 Manganese Steel |
|
4 |
Automatic rewinding |
|
|
5 |
Fixing Core Loading Paper |
|
3. Electric Configuration List
|
No. |
MOTOR MODEL |
MANUFACTURERS |
|
1 |
Main Motor Y132M-4 |
Lichao Shanghai |
|
2 |
Servo Motor 4.5ACA61 (with reduction gearbox) |
Delta |
|
3 |
Smart Sensor（Color Marks Sensor） |
Sick Germany |
|
4 |
Touch Screen DOP-BO7S200 |
Weinview |
|
5 |
PLC:DVP |
Delta |
|
6 |
Traction MotorZF32-2.253 |
Zhibao Taiwan |
|
7 |
Frequency Converter 7SKWVFD-B/2.2WVFD-M |
Delta |
|
8 |
Reduction Gearbox |
Germany |
|
9 |
Switch |
Delixi |
