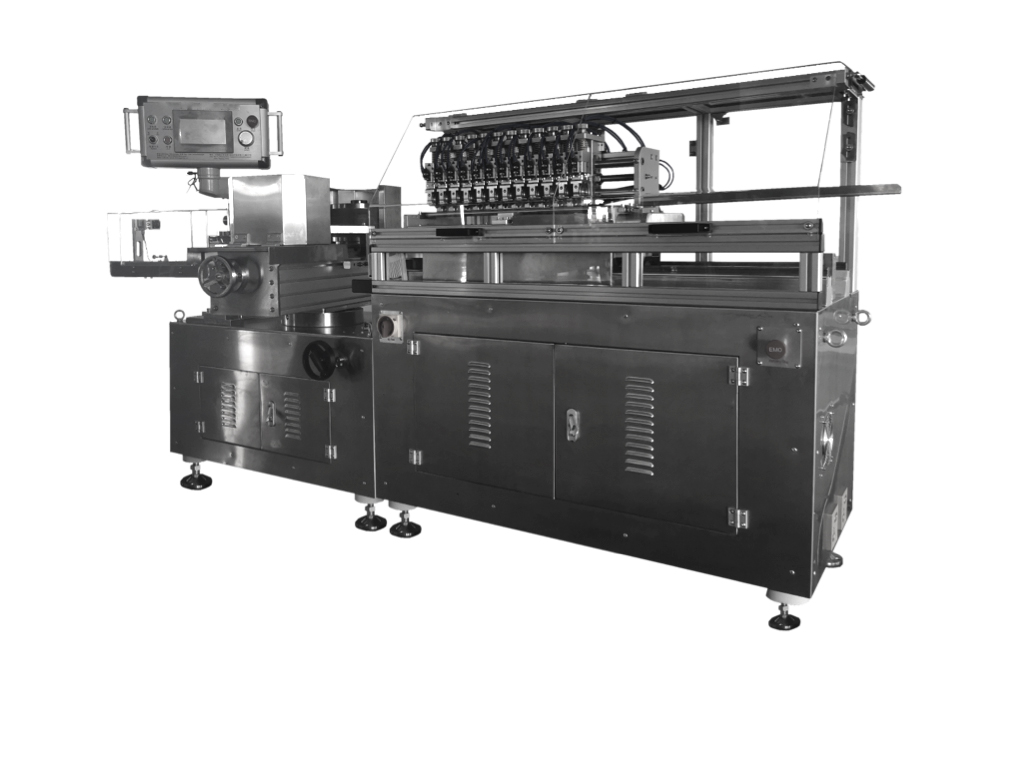

Paper Tubes Making Machine-60-70m/min
Main Technical Data:
|
NO. |
ITEM |
Description |
|
1 |
Number of paper |
3-4ply |
|
2 |
Max-diameter |
10mm |
|
3 |
Min-diameter |
5mm |
|
4 |
Max-thickness |
1mm |
|
5 |
Min-thickness |
0.2mm |
|
6 |
Min-length |
30-35mm |
|
7 |
Max-length |
550mm |
|
8 |
Output speed |
60-70m/min |
|
9 |
Rewinding noses |
Two noses /one belt |
|
10 |
Cutting way |
12 blades pneumatic |
|
11 |
Gluing way |
Double-face/Single face |
|
12 |
Length fixation |
Encoder |
|
13 |
Operator |
1 person |
|
14 |
Way of shaft fixing |
Pushing |
|
15 |
Speed control |
Servo |
|
16 |
Power input |
3x380V/50HZ |
|
17 |
Power consumption |
2kw/h |
|
18 |
Machine Size |
2250*640*1600mm |
|
19 |
Machine Weight |
1350kgs |
|
20 |
Space Needed |
7000*2500*1900mm |
