Technical parameter |
Control system控制系统 |
||
|
Layer of paper |
3-4 layers |
PLC controller |
Schneider |
|
Max. Outer Diameter |
6mm |
Human machine interface |
Schneider |
|
Min. outer diameter |
2.5mm |
Program version |
GD-XJ 5.0 |
|
Max. Thickness |
0.5mm |
Servo system |
Schneider |
|
Min. Thickness |
0.2mm |
Performer |
Schneider |
|
Min. Length |
120mm |
Max Lengt |
500mm |
|
Output speed |
3-150m/min |
Signal component |
Omron |
|
Winding system |
2 servo/1 pc belt |
Pneumatic component |
Airtac |
|
Cutting way |
1 knife pneumatic/1 servo |
synchronous control |
Synchronous belt |
|
Glue method |
Glue extraction circulate
|
|
|
|
Lenght control |
Encoder |
Assemble |
|
|
Operator |
1 person |
Tube rack |
Have |
|
Mandrel fixing |
Screw clamp |
Belt angle adjustment |
Wheel adjustment |
|
Speed control |
Servo |
Belt tension adjustment |
Wheel adjustment |
|
Power input |
3P/380V/50HZ |
Paper-break stop function |
Have |
|
Machine dimension |
2150*800*1650 |
Lubrication |
Electric roller |
|

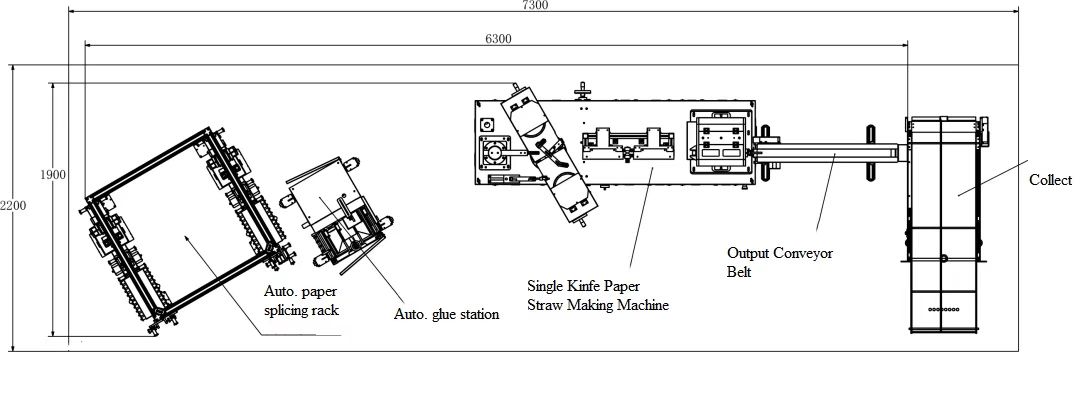

Floor area |
7000*3000*1700mm |
Paper tension control |
Continuous tension control |
|
Wheel diameter |
195mm |
Paper holder |
Automatic paper connecting holder |
|
Wheel height |
100mm |
Belt |
Piece baseband |
|
Max. spin speed |
200r/min |
Totalweight |
1150KGS |
