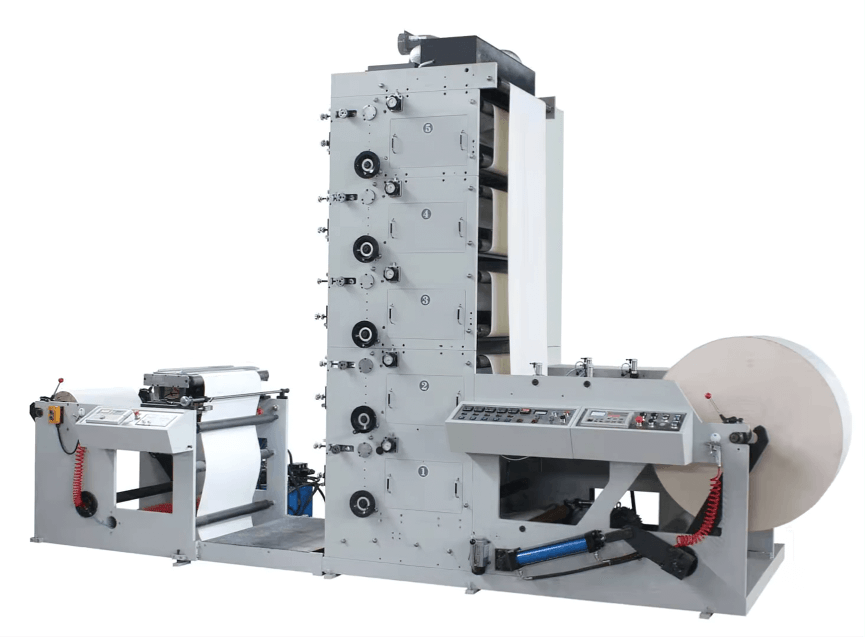

Paper Straw Flexo Printing Machine
|
Main Technical Parameters |
||
|
1 |
Max Unwinding Diameter |
1000mm |
|
2 |
Max Rewinding Diameter |
1000mm |
|
3 |
Printing Circumference |
180--420mm |
|
4 |
Max Web Width |
650mm |
|
5 |
Max Printing Width |
620mm |
|
6 |
Power supply (Can be Customized) |
380V 3PH 50HZ |
|
7 |
Printing Speed |
80- 100m/min |
|
8 |
Plate thickness |
1.7mm |
|
9 |
Tape thickness |
0.38mm |
|
10 |
Printing Gear |
1/8pc |
|
11 |
Substrate Thickness |
40-300gsm paper |
|
12 |
Main Motor |
5.5KW |
|
13 |
Power |
23KW |
|
14 |
Drying |
Infrared Dryer with 6pcs lamp, UV is optional |
|
15 |
The highest temperature of heating dryer |
120°C |
|
16 |
Size |
4.6*1.6*2.35m |
|
17 |
Weight |
About 3000kgs |
