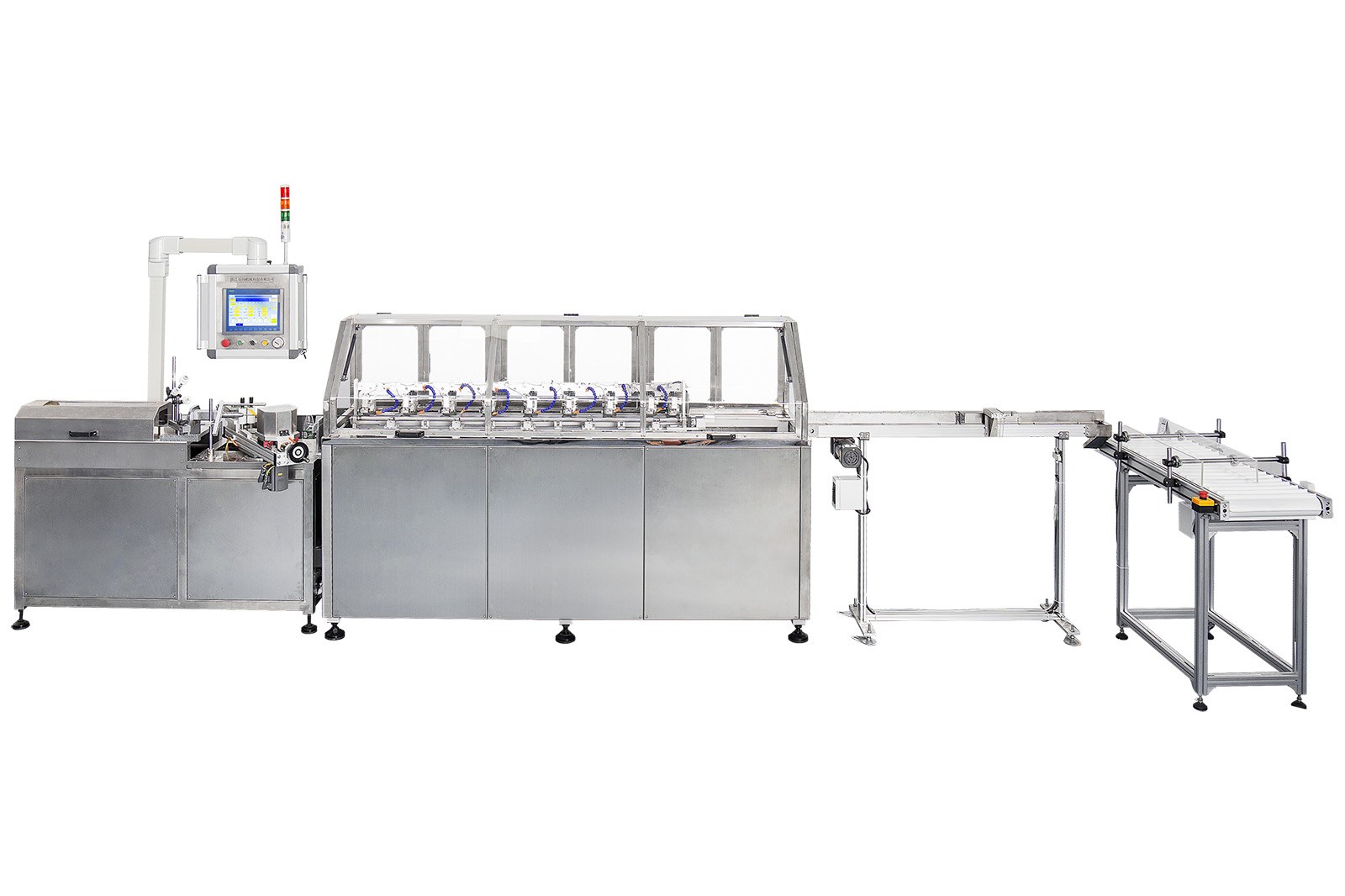

Paper Straw Making Machine-100m/min
Main Technical Data:
|
NO. |
ITEM |
Description |
|
1 |
Number of paper |
3-4ply |
|
2 |
Max-diameter |
12mm |
|
3 |
Min-diameter |
5mm |
|
4 |
Max-thickness |
1mm |
|
5 |
Min-thickness |
0.5mm |
|
6 |
Min-length |
90mm |
|
7 |
Max-Length |
1450mm |
|
8 |
Output speed |
70-80m/min |
|
9 |
Rewinding noses |
Two noses /one belt |
|
10 |
Cutting way |
8 blades pneumatic |
|
11 |
Gluing way |
Double-face/Single face |
|
12 |
Length fixation |
Encoder |
|
13 |
Operator |
1 person |
|
14 |
Way of shaft fixing |
Pushing |
|
15 |
Speed control |
Servo |
|
16 |
Power input |
3x380V/50HZ |
|
17 |
Power consumption |
3kw/h |
|
18 |
Size |
4250*640*1600mm |
|
19 |
Layout |
9500*3500*1900mm |
|
20 |
Weight |
1350 |
Control System
|
NO. |
ITEM |
Description |
|
1 |
PLC Controller |
Schneider |
|
2 |
Man-machine interface |
Schneider |
|
3 |
Program edition |
XJ2.0 |
|
4 |
Servo system |
Schneider*5 |
|
5 |
Actuator |
Schneider |
|
6 |
Signal component |
Omron |
|
7 |
Pneumatic component |
Airtac |
|
8 |
Synchronism control |
Synchronous belt |
|
9 |
Synchronism Tracking Cutting System |
Servo Synchronized Tracking System |
|
10 |
Frequency converter |
Schneider |
|
11 |
Circuit breaker |
Schneider |
|
12 |
Signal sensor |
Omron |
