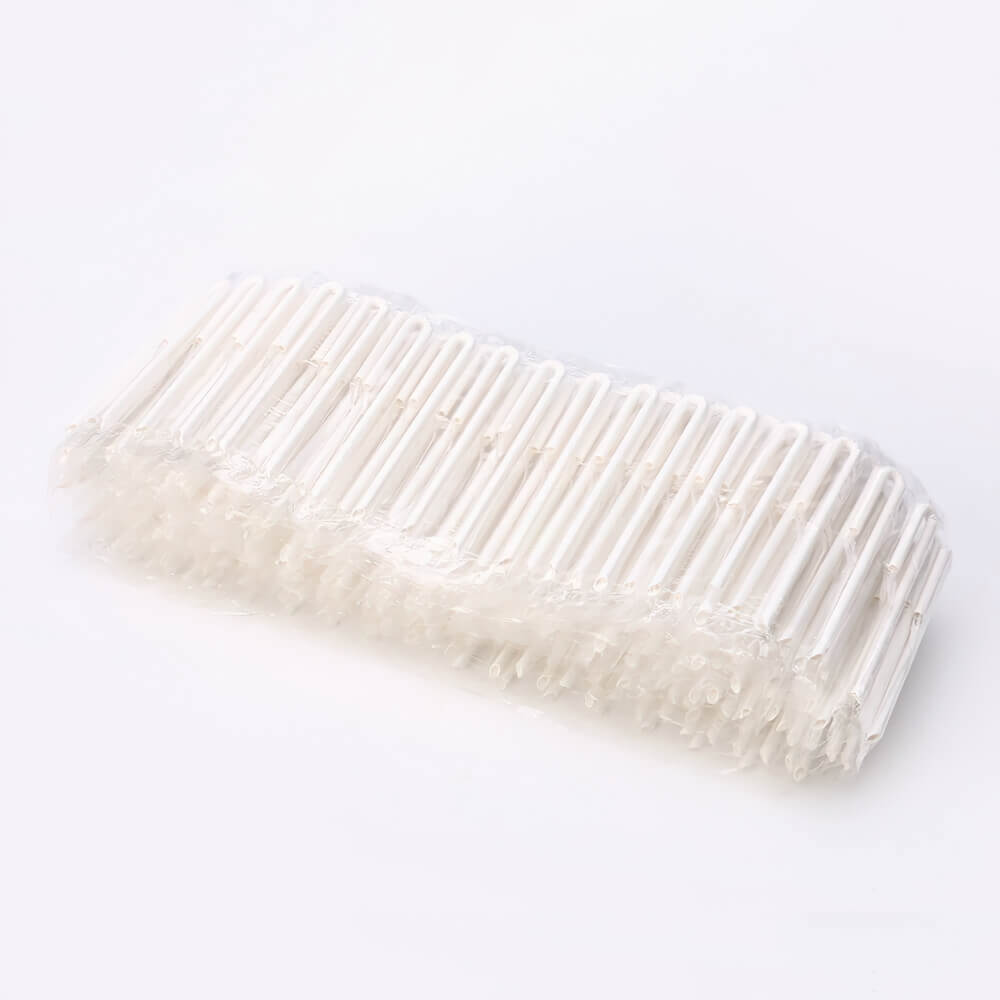

U straw packing with Angle-cut Machines
|
Driving Motor |
2.2 kw control by frequency converter |
|
|
Capacity |
400~600 pcs/min |
|
|
Packing method |
Four sides sealing |
|
|
Specifications of the packing material |
Material |
BOPP (can be hot sealed) |
|
Shape |
Roll |
|
|
Roll Dia. |
Max: 280mm |
|
|
Internal Dia. of paper tubes |
76mm |
|
|
Width of BOPP film |
Max: 180mm |
|
|
Thickness of BOPP film |
15μ-20μ |
|
|
Packing Shape |
22mm(pitch)×100~140m(wide) |
|
|
Straws Specifications |
Dia. |
ID: Ø 3.5mm OD: 4.2mm ID: Ø 3.8mm OD: 4.5mm |
|
Straw Thickness |
0.35mm |
|
|
Length of U-shape |
Bases on customer’s drawing |
|
|
Other specifications are Customizable |
||
|
Size (L×W×H) |
2000 × 1800×1750mm |
|
|
Weight |
950kg |
|
Layout
- The output is calculated based on the length 160mm.
- The whole seamless production line has a footprint of 55㎡.
- Daily capacity reaches 700.000pc during three-shift operation.
- Only one operator required.
